High Base Horizontal Handle Toggle Clamp Used As Machining Industry GH-225-DHB
Horizontal Hold Down Handle Toggle Clamp Destaco 225-U / GH-225-DHB
Features:
Quick release, small holding capacity
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps
| Weight (g) | Holding Capacity (kg) | Bar Opens (º) | Handle Opens (º) | Spindle Supplied |
| 286 | 227 | 90 | 65 | GH-FC-56212 |
Automobile Industry
1. Production of various automobile interior accessories:
1) Dashboards, etc. (using PP, ABS materials); used as clamping fixtures for "casting molds";
Main application models: 225-DHB, 431,40341.
2) Dashboards, etc. (using PU materials); used as clamping fixtures for "foaming molds"; and
Main application models: 40341,10448,20448,702-D etc.
3) Inspection of interior accessories is used as positioning and locking fixtures for testing jigs;
Main application models: 101-D,12130,12135,302-F etc.
4) Lining (with leather, wool cloth materials) is used as fixing fixtures for fixing upper and lower molds on the press.
Main application models: 40370,40380.
2. The rivets and welds on the chassis of small cars such as minibuses, jeeps and sedans are used as positioning and locking fixtures for riveting and welding jigs.
Main application models: 702-C,702-D,702-K,303-E,304-H etc.
3. In the production of partially refitted auto bodies, the manual toggle clamp is used in the assembly and welding of auto bodies.
Main application models: F clamps and Toggle Pliers.
4. Manual toggle clamps are used for local spot welding during assembly in small and medium sized automobile plants.
Main application models: Toggle Pliers.
5. Production of luxurious minibus and bus bodies:
1) Body keel welding is used as fixtures for welding jigs.
Main application models: 702-D,10247,12265,11412 etc.
2) For welding of the outer metal plate of the car body, manual toggle clamps are used as fixtures.
Main application models: F clamps and Toggle Pliers.
3) For the adhesion of super-luxury bus and minibus interior accessories, manual toggle clamps are used for adhesion and fixation between interior accessories and auto bodies.
Main application models: F clamps.
Note: Manual toggle clamps can be used for all products or parts that are similar to the above categories regarding the manufacturing materials and production methods and have the characteristics of continuous mass production.
Machinery Manufacturing Industry
For the production of modular machine tools, machining centers and other machine tool equipment on its workbench or in the conversion mechanism, manual toggle clamps can be used as fixtures and change-over gears
Main application models: Push Pull Toggle Clamps.
Machining Industry
Manual toggle clamps can be used to replace the old stationary fixture on the workbench of the milling machine, slotting machine, drilling machine, boring machine, modular machine tool, machining center, CNC (various) machine tools, and other mechanical processing equipment process mechanical parts.
Main application models: Push-Pull Toggle Clamps.,Heavy Duty Weldable Toggle Clamps.
Other Industries
In addition to the above-mentioned industries, manual toggle clamps have been widely used in military industry, stylistic industry, office supplies manufacturing industry, medical equipment, and equipment manufacturing industry, drinking machinery and supplies manufacturing industry, power equipment manufacturing industry, bridge, highway equipment, and facilities manufacturing industry, tooling manufacturing industry, environmental protection, firefighting equipment, and facilities manufacturing industry, communication equipment and equipment manufacturing industry, decoration, installation industry, and high-tech fields.
1. Installation base divided into two parts and relatively rotating, easy to install
2.Fast and flexible loading and clamping with stable clamping force
3.Adjustable compression force height suitable for different height of door plank and frame
4.Safe and convenient to operate
Use with the optional Toggle Clamp Base Plate: Tap your own holes to adapt a wide selection of Toggle Clamps or custom weld Toggle Clamps onto a base plate. Toggle Clamps offer Quick acting lock and release action for fast clamping, and easier removal of the finished workpiece.
Ideal for production work.
| Q'TY PCS | 1-100 | 101-500 | 501-1000 | 1001-2000 | 2001-5000 | 5000+ |
| EST.DAYS | 1-3 | 3-5 | 5-7 | 7-15 | 15-25 | 25-35 |
| Model | GH-225-DHB |
| Bar Type | U Bar |
| Base Type | High Flanged Base |
| Handle Type | Straight |
| Clamping Type | Horizontal |
| Operation Type | Hold Down Quick Clamping |
| Holding Force (LBS) | 460 |
| Spindle Standard | mm/inch |
| Material | Carbon Steel |
| Surface Treatment | Zinc Plating |
| Finish | Silver; Red / Blue / Black / Orange Dipped Grip; |
| Price Term | Ex-works; FOB Shenzhen; CIF; CFR; DDU; DDP; DA; DP; |
| Payment Term | T/T; L/C; Western Union; Visa; MoneyGram; Paypal; |
|
|

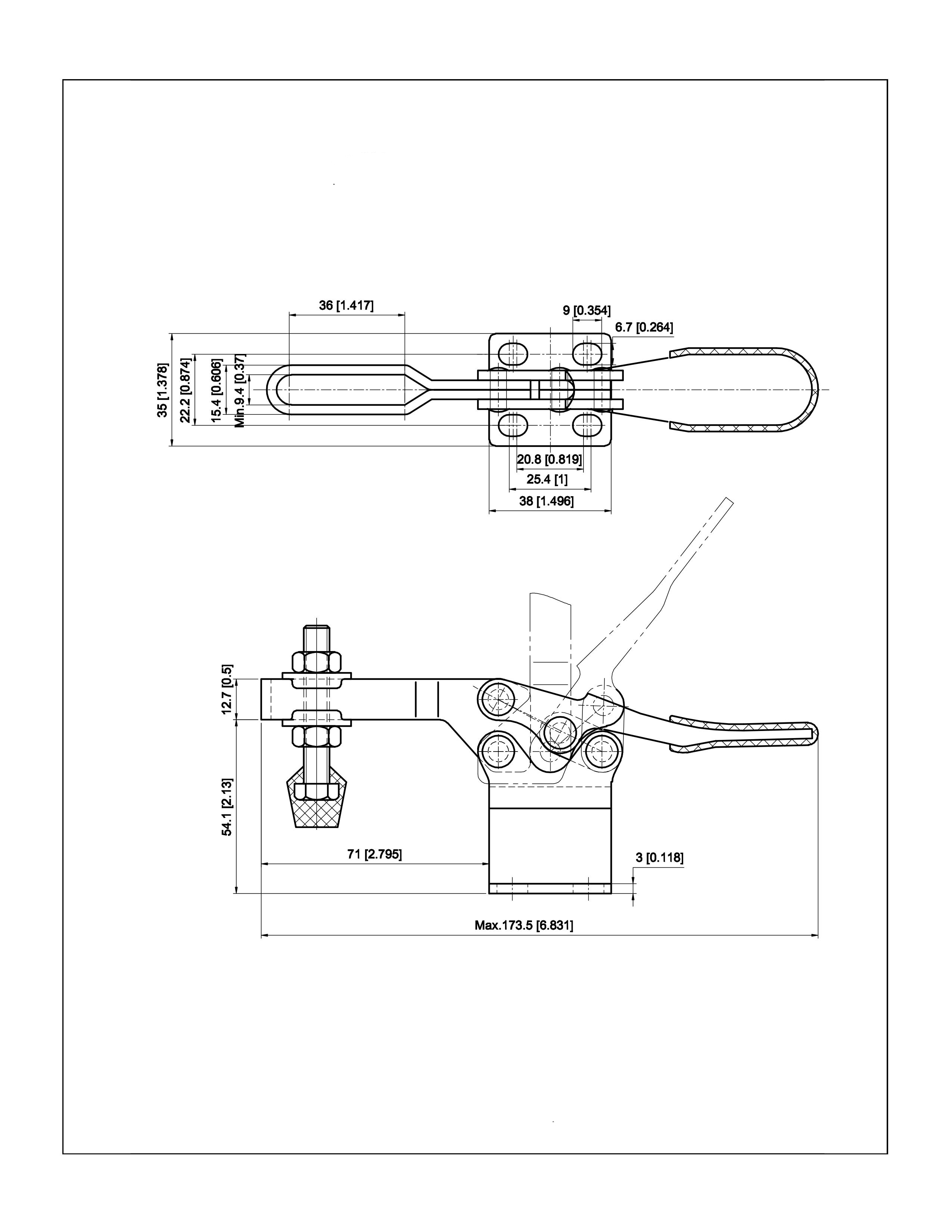

High Base Horizontal Handle Toggle Clamp Used As Machining Industry GH-225-DHB Images
|
