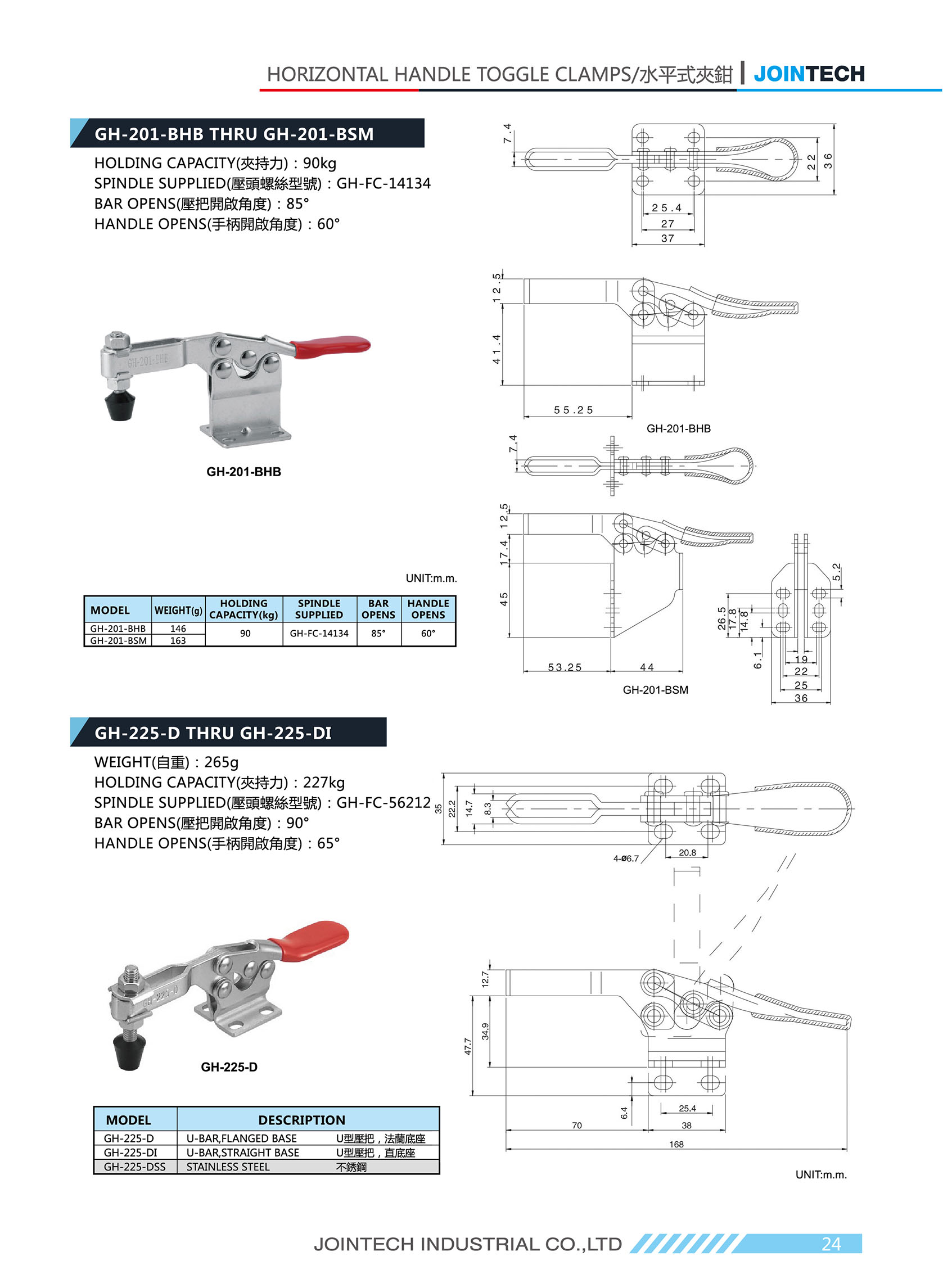

Horizontal Hold Down Handle Toggle Clamp GH-201-BHB

Features:
Quick release, small holding capacity
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps

Logistics Equipment Manufacturing Industry

1. For the welding of metal parts such as fork trucks and cabs, manual toggle clamps are used as fixtures for "welding jigs."
Main application models: 201-BHB, 11412,10247,12265 etc.

2. For the welding of metal parts of manual movers, platform trucks and stacking trucks, manual toggle clamps are used as fixtures for "welding jigs."
Main application models: 11412,203-F,225-D,101-H,101-E etc.

3. For the iron wire welding of cages and cage carriers, manual toggle clamps are used as fixtures and positioning bolts for "welding fixtures of the iron wire.
Main application models: 203-F,201,302-F,101-A,304-C etc.

4. For the welding of racks, manual toggle clamps are used as positioning bolts and fixtures for forming and assembling "welding molds."
Main application models: 11412,225-D,203-F,302-F etc.
5. For the welding of metal parts of tool cabinets and mobile cabinets, manual toggle clamps are used as fixtures for "welding molds."
Main application models: 11412,225-D,203-F etc.

6. Barcode readers, scanners, printers, etc.

Engineering Machinery Manufacturing Industry

Such as excavators, loaders, concrete mixers, and pavers; manual toggle clamps are mainly used for welding cab covering metal parts as fixtures and positioning bolts for "welding jigs."
Main application models: 201-BHB,13002-B,36204,30607,12305,22502-B,10247 etc.

Automobile Industry

1. Production of various automobile interior accessories:
1) Dashboards, etc. (using PP, ABS materials); used as clamping fixtures for "casting molds";
Main application models: 431,40341.

2) Dashboards, etc. (using PU materials); used as clamping fixtures for "foaming molds"; and
Main application models: 40341,10448,20448,702-D etc.
3) Inspection of interior accessories is used as positioning and locking fixtures for testing jigs;
Main application models: 101-D,12130,12135,302-F etc.

4) Lining (with leather, wool cloth materials) is used as fixing fixtures for fixing upper and lower molds on the press.
Main application models: 40370,40380.

2. The rivets and welds on the chassis of small cars such as minibuses, jeeps and sedans are used as positioning and locking fixtures for riveting and welding jigs.
Main application models: 702-C,702-D,702-K,303-E,304-H etc.

3. In the production of partially refitted auto bodies, the manual toggle clamp is used in the assembly and welding of auto bodies.
Main application models: F clamps and Toggle Pliers.

4. Manual toggle clamps are used for local spot welding during assembly in small and medium sized automobile plants.
Main application models: Toggle Pliers.

5. Production of luxurious minibus and bus bodies:
1) Body keel welding is used as fixtures for welding jigs.
Main application models: 702-D,10247,12265,11412 etc.

2) For welding of the outer metal plate of the car body, manual toggle clamps are used as fixtures.
Main application models: F clamps and Toggle Pliers.

3) For the adhesion of super-luxury bus and minibus interior accessories, manual toggle clamps are used for adhesion and fixation between interior accessories and auto bodies.
Main application models: F clamps.

Note: Manual toggle clamps can be used for all products or parts that are similar to the above categories regarding the manufacturing materials and production methods and have the characteristics of continuous mass production.
