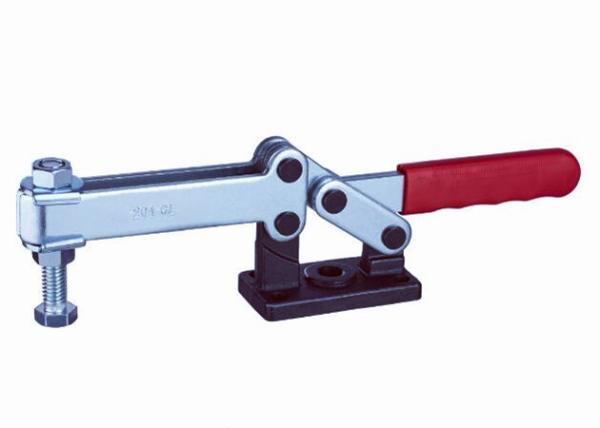

Goodhand Galvanized 1300lbs Big Capacity Horizontal Handle Toggle Clamp GH-204-GL
Horizontal Hold Down Handle Toggle Clamp GH-204-GL
Features:
Quick release, big holding capacity
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps

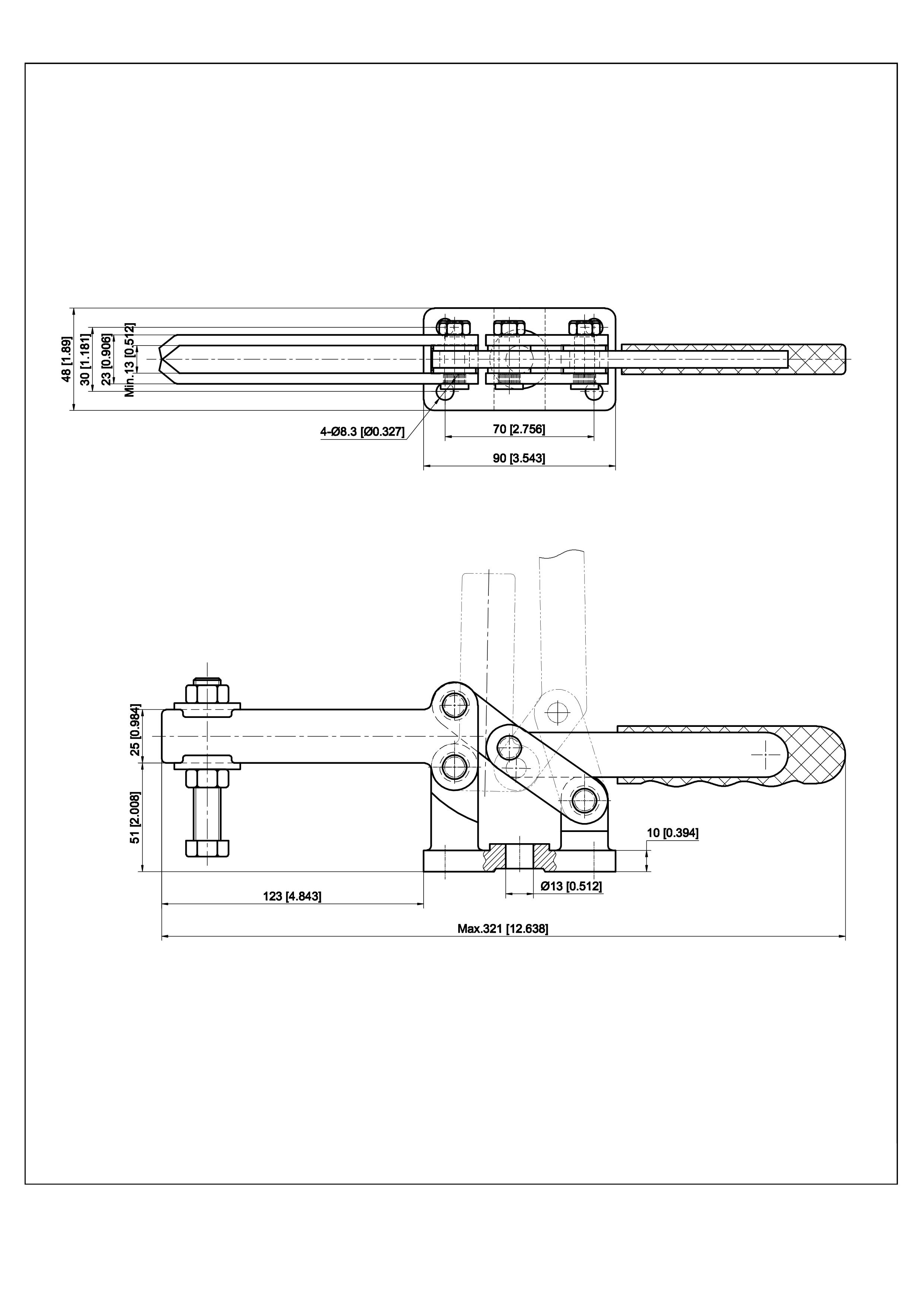

| Weight (g) | Holding Capacity (kg) | Bar Opens (º) | Handle Opens (º) | Spindle Supplied |
| 1120 | 650 | 91 | 94 | GH-SA-12300 |
Electronics Industry
1. Manual toggle clamps are used in the assembly line and testing process of small motors and electric tools.
Main application models: 204-GL, 12050,12050-U,101-A,102-B,301-A,304-C etc.
2. The metal shell of various electrical appliances, such as water heaters, microwave ovens, air conditioners, refrigerators, cabinets, and chassis is quickly clamped on the "welding molds" as a fixture.
Main application models: 11412,203-F,225-D,21502-B,102-B,101-D
3. Electrostatic spraying equipment and manual toggle clamps serve as accessories, mainly for barrel cover opening and closing. (In the spraying production line, a manual toggle clamp is sometimes used to fix the processed object).
Main application models: 40323,431,40341,451 etc.
4. One of the production equipment for PCB boards, jet-soldering machine, with manual toggle clamp on the conveyor chain fixture.
Main application models: 101-A,201,20300,21800 etc.
5. The manual toggle clamp is used as a component on the "mechanical winding machine" for fixing the core frame.
Main application models: 12130,12130-A etc.
6. Electronic toys, game consoles and IC cards.
Toy Manufacturing Industry
1. Electronic toy manufacturing industry.
2. Plastic modification manufacturing industry: Generally used in the production line with injection molding ring. Manual toggle clamps are used for opening and closing the upper and lower molds on the molds of its production line.
Main application models: 204-GL, 20235,201-B,302-F etc.
Plastic Products Manufacturing Industry
Plastic products are basically divided into two categories: blow molding and injection molding. At present, no manual toggle clamp has been found in blow molding, while a large number of manual toggle clamps have been used for injection molding products. Even single-machine and single-model "injection molding machines" have begun to replace the old screw rod with 7-head manual toggle clamps or corner cylinders for fixing molds.
Notes:
(1) For the single-machine single-model injection molding machine, manual toggle clamp 7-heads and corner cylinders are widely used to replace the old screw rod nut fixing molds.
(2) In the loop injection molding production line, the manual toggle clamp is widely used as open/close locking mechanism for the upper and lower molds on the molds of the production line.
(3) In the production line of injection molding, the manual toggle clamp is widely used as a locking mechanism in its mold.
Main application models: 10448,302-F,36060,303-E,40341,431 etc.
