Brand Name : Jointech
Model Number : Destaco 247-U / GH-10247
Place of Origin : China
MOQ : 1-100 PCS
Price : Negotiable
Payment Terms : T/T; L/C; Western Union; Paypal
Supply Ability : 200000 PCS / Month
Delivery Time : 1-60 Days
Packaging Details : PE Bag and Paper Carton
Certification : ISO9001:2015
Usage : Heavy Duty Clamping
Material : Carbon Steel
Structure : Toggle Clamp
Type : Vertical U / Solid
Application : Equipment Manufacturing
Function : Work Holding
OEM / ODM : OK
Base Type : Welded Metal Plate
Large Holding Capacity Vertical Handle Toggle Clamp Destaco 247-U / GH-10247
Manual Quick Release Vertical Hold Down Toggle Clamp Destaco 247-U / GH-10247
Features:
Quick release, large holding capacity
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps

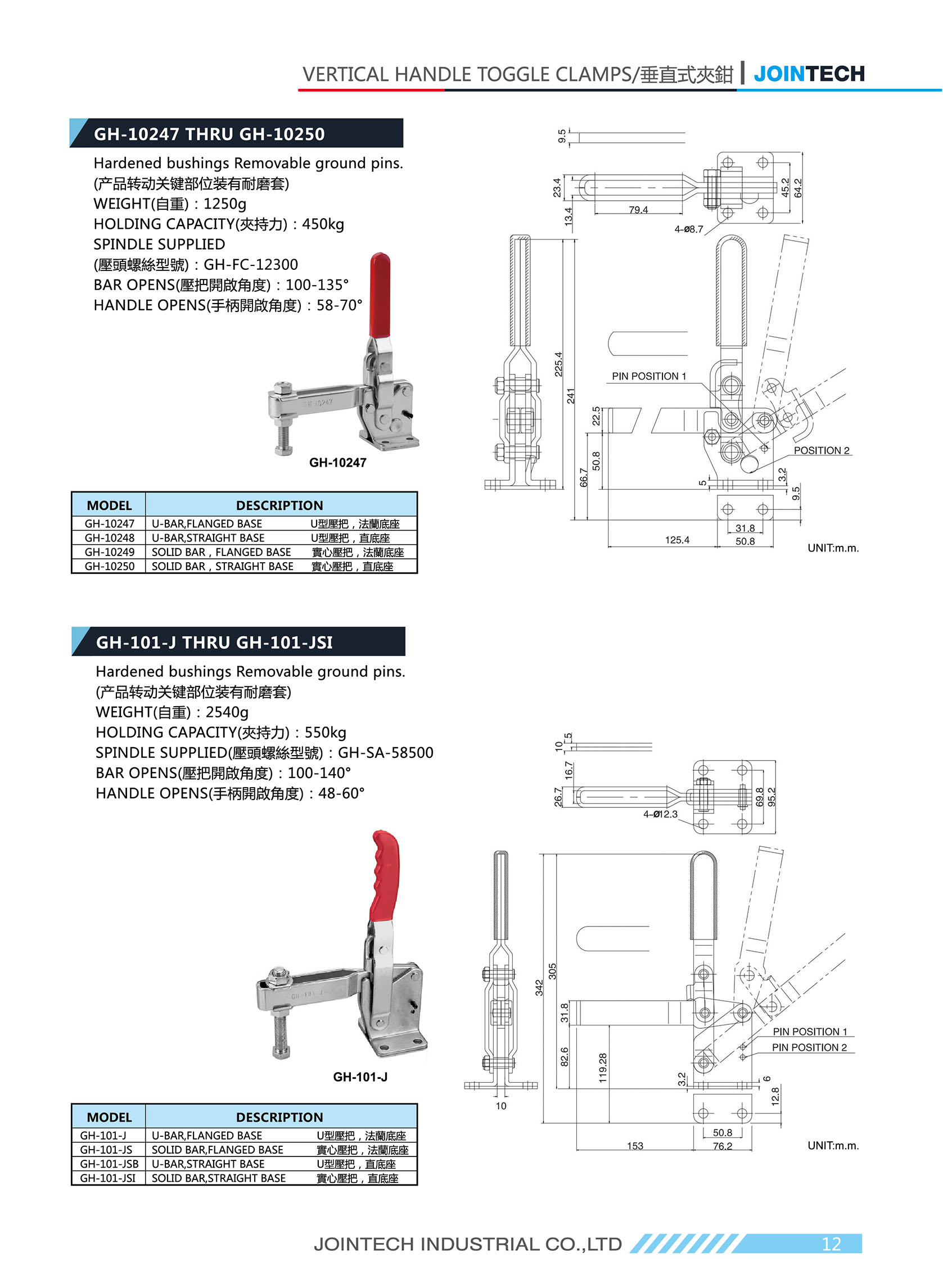

Weight (g) | Holding Capacity (kg) | Bar Opens (º) | Handle Opens (º) | Spindle Supplied |
1250 | 450 | 100-135 | 58-70 | GH-FC-12300 |
Automobile Industry
1. Welding inspection of various vehicle frames and accessories (small sheet metal parts) is used as positioning bolts and fixtures for inspecting jigs. Main application models: 10247,12135,12137,304-C,302-F etc.
2. Welding of various automobile roof and side windows is used as fixtures for welding fittings. Main application models: 11412,203-F,21502-B.
3. Welding of various vehicle frames and accessories (small sheet metal parts) is used as positioning bolts and fixtures for welding jigs.
Main application models: 702-C,702-D,702-K,101-J,10247,12265,304-E,304-H,303-E etc.
4. Stamping of all kinds of vehicle frames, accessories (small sheet metal parts) and sheet metal door panel parts is used as positioning bolts and fixtures for stamping parts inspecting jigs. Main application models: 12130,12135,11412,302-F,36020 etc.
5. Welding and welding inspection of various door panels are used as positioning bolts and fixtures for welding and testing molds.
Main application models: 702-C,702-D,101-E,10247,12130,12135,12137,304-E etc.
Logistics Equipment Manufacturing Industry
1. Barcode readers, scanners, printers.
2. For the welding of metal parts of tool cabinets and mobile cabinets, manual toggle clamps are used as fixtures for "welding molds."
Main application models: 10247,11412,225-D,203-F etc.
3. For the welding of racks, manual toggle clamps are used as positioning bolts and fixtures for forming and assembling "welding molds."
Main application models: 11412,225-D,203-F,302-F etc.
4. For the iron wire welding of cages and cage carriers, manual toggle clamps are used as fixtures and positioning bolts for "welding fixtures of the iron wire. Main application models: 203-F,201,302-F,101-A,304-C etc.
5. For the welding of metal parts of manual movers, platform trucks and stacking trucks, manual toggle clamps are used as fixtures for "welding jigs." Main application models: 11412,203-F,225-D,101-H,101-E etc.
6. For the welding of metal parts such as fork trucks and cabs, manual toggle clamps are used as fixtures for "welding jigs."
Main application models: 11412,10247,12265 etc.
Q'TY PCS | 1-100 | 101-500 | 501-1000 | 1001-2000 | 2001-5000 | 5000+ |
EST.DAYS | 1 | 3 | 7 | 15 | 25 | 35 |
Brand | JOINTECH |
Model | GH-10247 / 10248 / 10249 / 10250 |
Bar Type | U / Solid |
Base Type | Flanged / Straight |
Handle Type | Straight |
Clamping Type | Vertical |
Operation Type | Hold Down Quick Clamping |
Standard / Non | Standard |
Holding Force (LBS) | 900 |
Spindle Standard | mm/inch |
Material | Iron |
Surface Treatment | Zinc Plated |
Finish | Silver; Red Anti-slip Dipped Grip; |
Design | OEM & ODM |
Price Term | Ex-works; FOB Shenzhen; CIF; CFR; DDU; DDP; DA; DP; |
Payment Term | T/T; L/C; Western Union; Visa; MoneyGram; Paypal; |
Sample Request | F.O.C. / $3USD |
Stock Status: (PCS) | 500 |
Package Method | PE Bag; Inner and Master Carton; Each Master Carton is Less than 50lbs; |
Pallet | Wooden / Fumigation / Plywood / Plastic / Aluminum Alloy; |
Shipment Method | Sea / Train / Truck / UPS / DHL / FEDEX / TNT / EMS |
![]() |

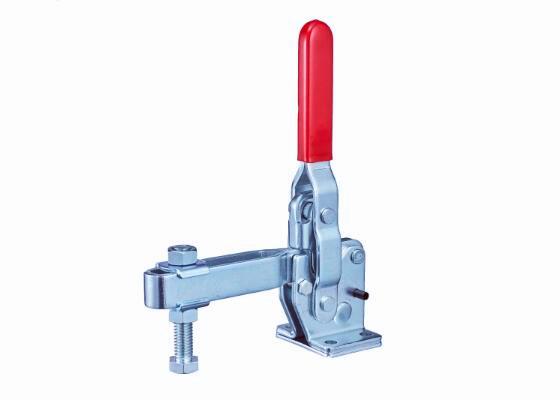

Destaco 900lbs Carbon Steel Vertical Handle Toggle Clamp Images |
