Manual Quick Release Vertical Handle Toggle Clamp With High Base GH-13005-HB
Manual Vertical Hold Down Toggle Clamp GH-13005-HB
Features:
Quick release, small holding capacity
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps

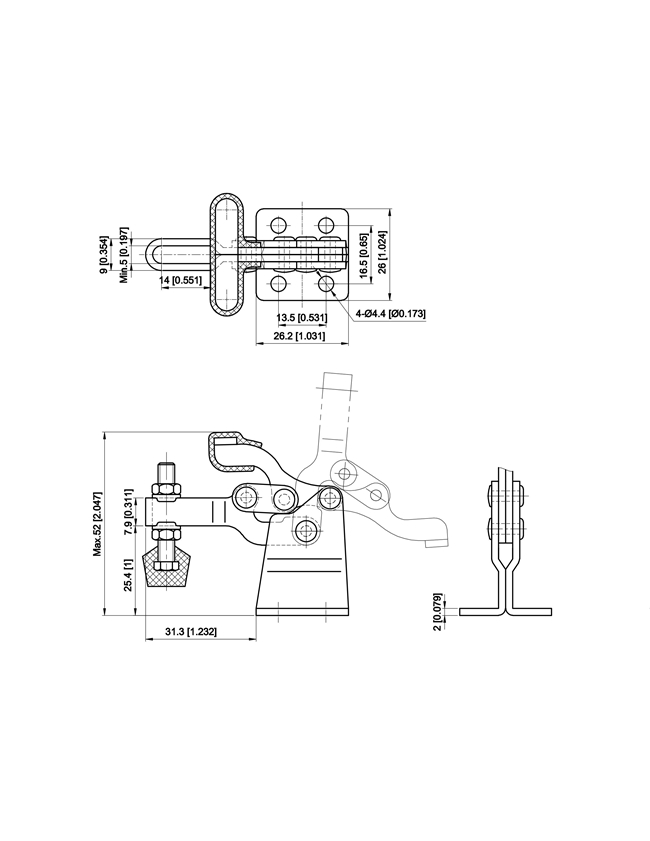

| Weight (g) | Holding Capacity (kg) | Bar Opens (º) | Handle Opens (º) | Spindle Supplied |
| 68 | 136 | 90 | 170 | GH-FC-10138 |
Motorcycle Industry
1. Welding of car frames is used as positioning bolts and fixtures for welding molds.
Main application models: 13005-HB,12265,11412,11421,101-B,12205,10247,22175,25382,36020,304-E,304-H,303-E,36060,702-C,30509 etc.
2. Steering column: welding of front and rear forks and guard frames is used as positioning bolts and fixtures for welding jigs.
Main application models: 11421,11412,22175,36020,302-F,303-E etc.
3. The production of engine cylinder heads and cylinder blocks is used as fixtures for drilling machines.
Main application models: 25383,25382,12265-A,12132-A etc.
4. Carburetors, mufflers and wire harnesses are all used in the same way as in the "automobile industry."
Note: Manual toggle clamps can be used for all products or parts that are similar to the above three points regarding the manufacture of materials and production methods and have the characteristics of continuous mass production.
Railway Vehicle Industry (including subways and light rail vehicles)
1. Body keel welding is used as fixtures for welding molds.
Main application models: 101-J,10247,22502-B,11421,203-F,12130,702-C,702-D.
2. For welding of the outer metal plate of the car body, manual toggle clamps are used as fixtures.
Main application models: F clamps.
3. Welding of door panels is used as positioning bolts and fixtures for welding jigs.
Main application models: 11412,12205,10247,225-D,21382,304-C,304-E etc.
4. Welding of seats is used as fixtures for welding fittings. Main application models: 12265,11421,36020,22235 etc.
5. The production of molded foams for luxury seats is used as fixtures for foaming molds. Main application models: 702-D,40341,304-H etc.
6. The adhesion of luxury auto interior accessories is used for adhesion and fixation between interior accessories and auto bodies.
Main application models: F clamps.
| Q'TY PCS | 1-100 | 101-500 | 501-1000 | 1001-2000 | 2001-5000 | 5000+ |
| EST.DAYS | 1 | 3 | 7 | 15 | 25 | 35 |
| Brand | JOINTECH |
| Model | GH-13005-HB |
| Bar Type | U |
| Base Type | Flanged High |
| Clamping Type | Vertical |
| Operation Type | Hold Down |
| Holding Force (LBS) | 136 |
| Spindle Standard | mm/inch |
| Material | Carbon Steel; SUS#201; SUS#304; SUS#316; |
| Surface Treatment | Zinc Plated |
| Finish | Silver |
| Design | OEM & ODM |
| Price Term | Ex-works; FOB Shenzhen; CIF; CFR; DDU; DDP; |
| Sample Request | F.O.C. |
| Stock Status: (PCS) | 1200 |
| Package Method | PE Bag; Inner and Master Carton; Each Master Carton is Less than 50lbs; |
| Shipment Method | Sea / Train / UPS / DHL / FEDEX / TNT / EMS |
Product Tags:
|
|

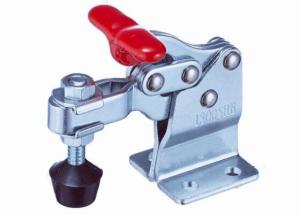

Quick Locking Galvanized 136LBS Hold Down Toggle Clamp Images
|
