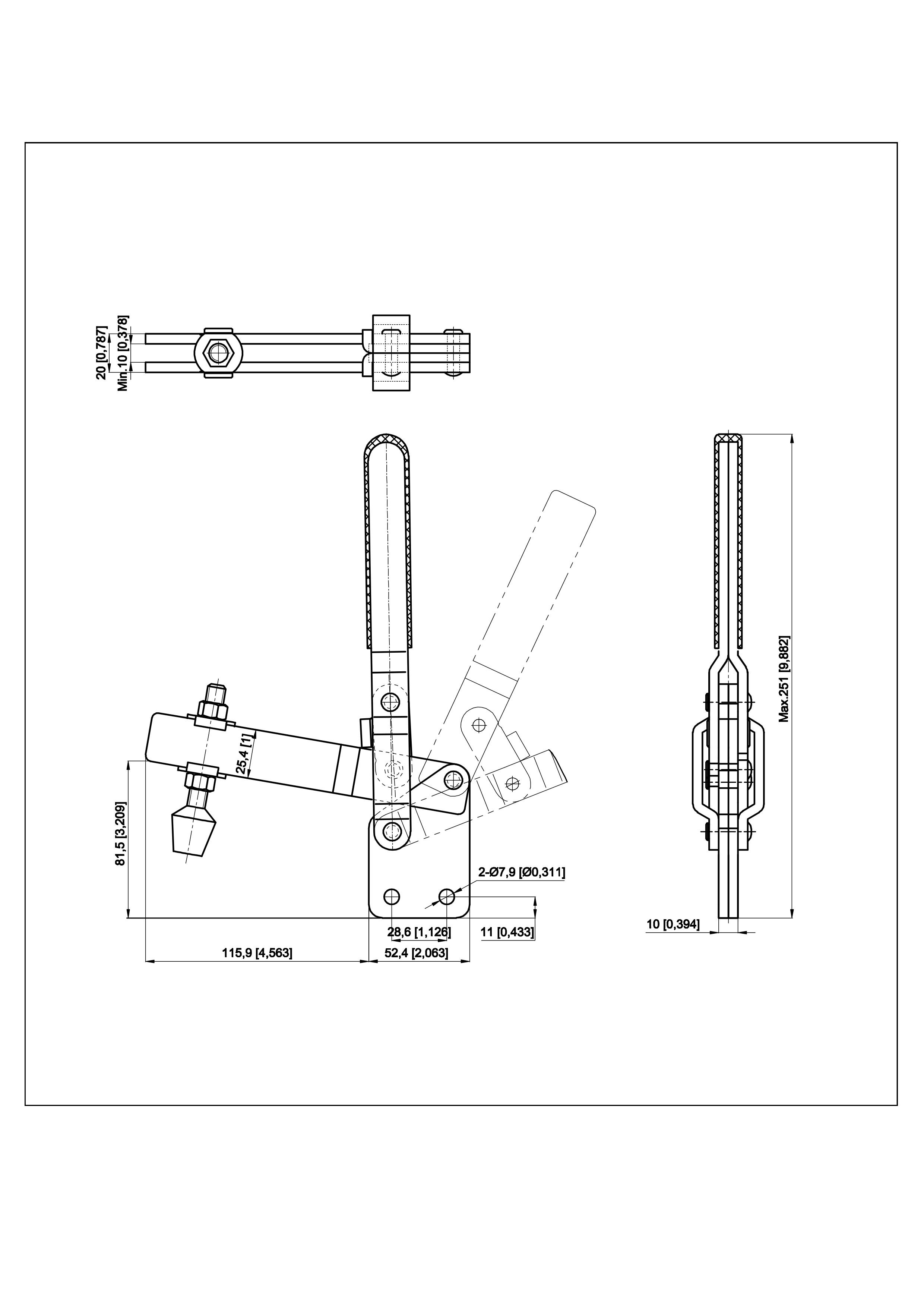

Big Holding Capacity Straight Base Open Bar Vertical Handle Toggle Clamp GH-12310
Manual Quick Release Vertical Hold Down Toggle Clamp GH-12310
Features:
Quick release, small holding capacity
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps
| Weight (g) | Holding Capacity (kg) | Bar Opens (º) | Handle Opens (º) | Spindle Supplied |
| 990 | 364 | 100 | 65 | GH-FC-38312 |
Automobile Industry
1. Welding inspection of various vehicle frames and accessories (small sheet metal parts) is used as positioning bolts and fixtures for inspecting jigs. Main application models: 12135,12137,304-C,302-F etc.
2. Stamping of all kinds of vehicle frames, accessories (small sheet metal parts) and sheet metal door panel parts is used as positioning bolts and fixtures for stamping parts inspecting jigs. Main application models: 12130,12135,11412,302-F,36020 etc.
3. Welding of various vehicle frames and accessories (small sheet metal parts) is used as positioning bolts and fixtures for welding jigs.
Main application models: 702-C,702-D,702-K,101-J,10247,12265,304-E,304-H,303-E etc.
4. Welding and welding inspection of various door panels are used as positioning bolts and fixtures for welding and testing molds.
Main application models: 702-C,702-D,101-E,10247,12130,12135,12137,304-E etc.
5. Welding of various automobile roof and side windows is used as fixtures for welding fittings. Main application models: 11412,203-F,21502-B.
Decorative Building Materials Industry
It refers to the decorative building materials products produced by PU plastic foaming, such as carved lines, lamp panels, decorative flowers, internal and external angles, and Roman columns. The manual toggle clamp is used as a fixture on the "foaming mold."
Main application models: 40341.
Shoemaking Industry
It refers to the PU sole produced by PU foaming mode, and manual toggle clamps are used as a fixture in PU foaming molds for sole manufacture. Main application models: 12310,10448.
Note: Manual toggle clamps can be used for all products or parts that are produced with PU foaming methods and have the characteristics of continuous mass production.
Note: PU has been widely used in military, sports, construction and daily necessities. Manual toggle clamps can be used for products produced with PU foaming methods.
Plastic Machinery Manufacturing Industry
Manual toggle clamps are used as fittings for such machines as plastic crushers, vibration screens, and dryers.
Main application models: 431,101-B,40341 etc.
Printing Machinery Manufacturing Industry
Manual toggle clamps are used as fittings for such machines, such as stretcher machines (also known as stretching machines), copy boards (also known as exposure machines), and screen printing machines. This kind of machinery is not only used for ordinary text and pattern printing but also more for the manufacture of PCB boards in the electronics industry. Main application models: 12310,11412,203-F,203-P,12265.
| Brand | JOINTECH |
| Model | GH-12305 / 12310 / 12315 / 12320 |
| Bar Type | Open / Solid Bar |
| Base Type | Flanged / Straight |
| Handle Type | Straight |
| Clamping Type | Vertical |
| Operation Type | Hold Down Quick Clamping |
| Standard / Non | Standard |
| Holding Force (LBS) | 728 |
| Spindle Standard | mm/inch |
| Material | Metal |
| Surface Treatment | Zinc Plated; Nickle Plated; Black Oxide; |
| Finish | Silver; Natural; Red / Blue / Black / Orange Dipped Grip; |
| Design | OEM & ODM |
| Price Term | Ex-works; FOB Shenzhen; CIF; CFR; DDU; DDP; DA; DP; |
| Payment Term | T/T; L/C; Western Union; Visa; MoneyGram; Paypal; |
| Sample Request | F.O.C. / $7USD |
| Stock Status: (PCS) | 300 |
| Package Method | PE Bag; Inner and Master Carton; Each Master Carton is Less than 50lbs; |
| Pallet | Wooden / Fumigation / Plywood / Plastic / Aluminum Alloy; |
| Shipment Method | Sea / Train / Truck / UPS / DHL / FEDEX / TNT / EMS |
| Q'TY PCS | 1-100 | 101-500 | 501-1000 | 1001-2000 | 2001-5000 | 5000+ |
| EST.DAYS | 1 | 3 | 7 | 15 | 25 | 35 |
